Santa Ana, California / Custom to print
Custom Core Pins & Mold Components.
Made in the USA.

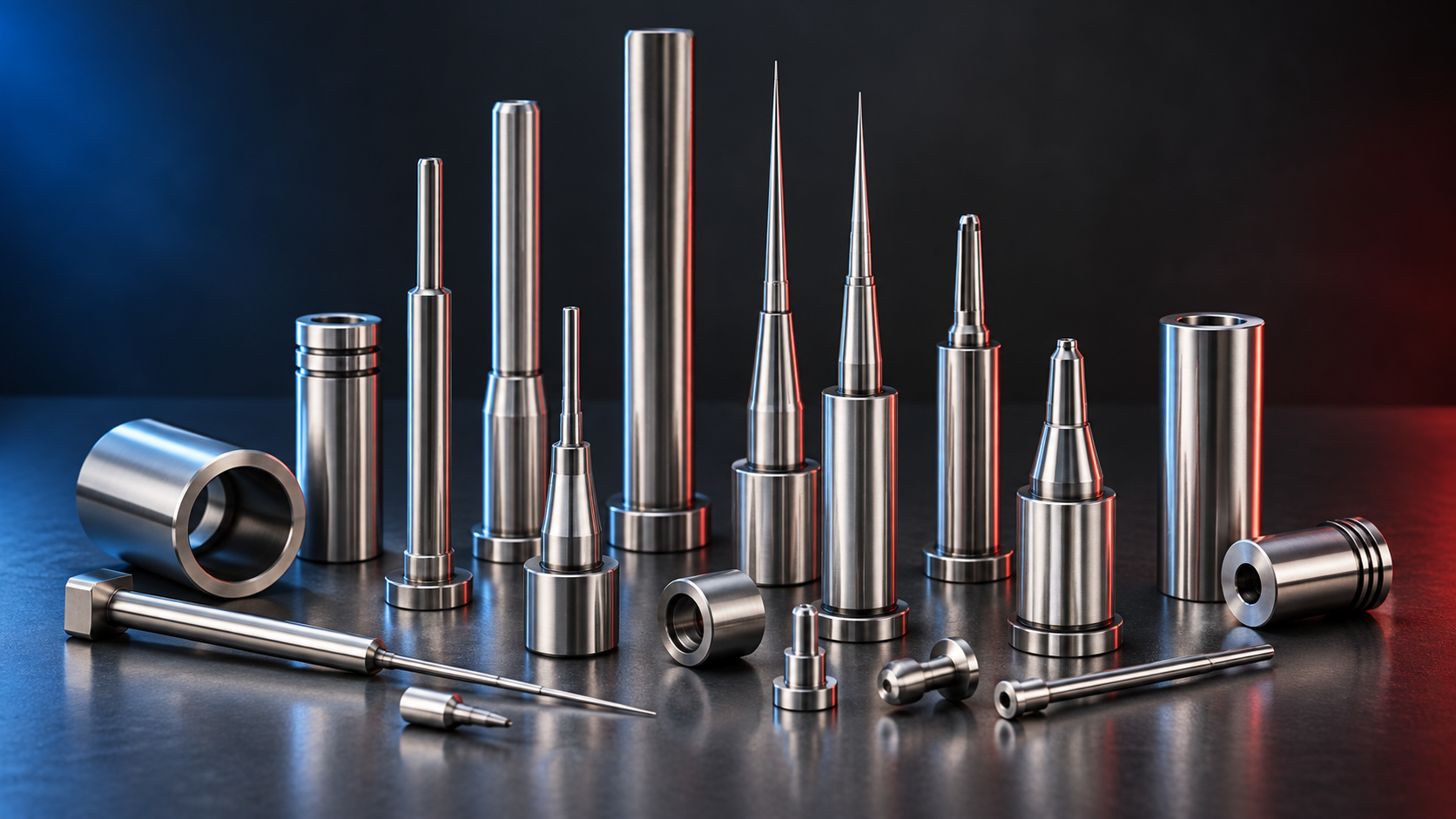

Core pins, ejector pins, ejector blades and precision components manufactured to your drawings. Precision grinding and CNC machining for new tooling, replacement parts and production requirements.
50+ Years ExperienceMade in USACustom to PrintWorldwide Shipping
Have a Drawing Ready?
Send your drawing, quantity and desired delivery date. Add material and inspection requirements when available.
01 / Manufacturing capabilities

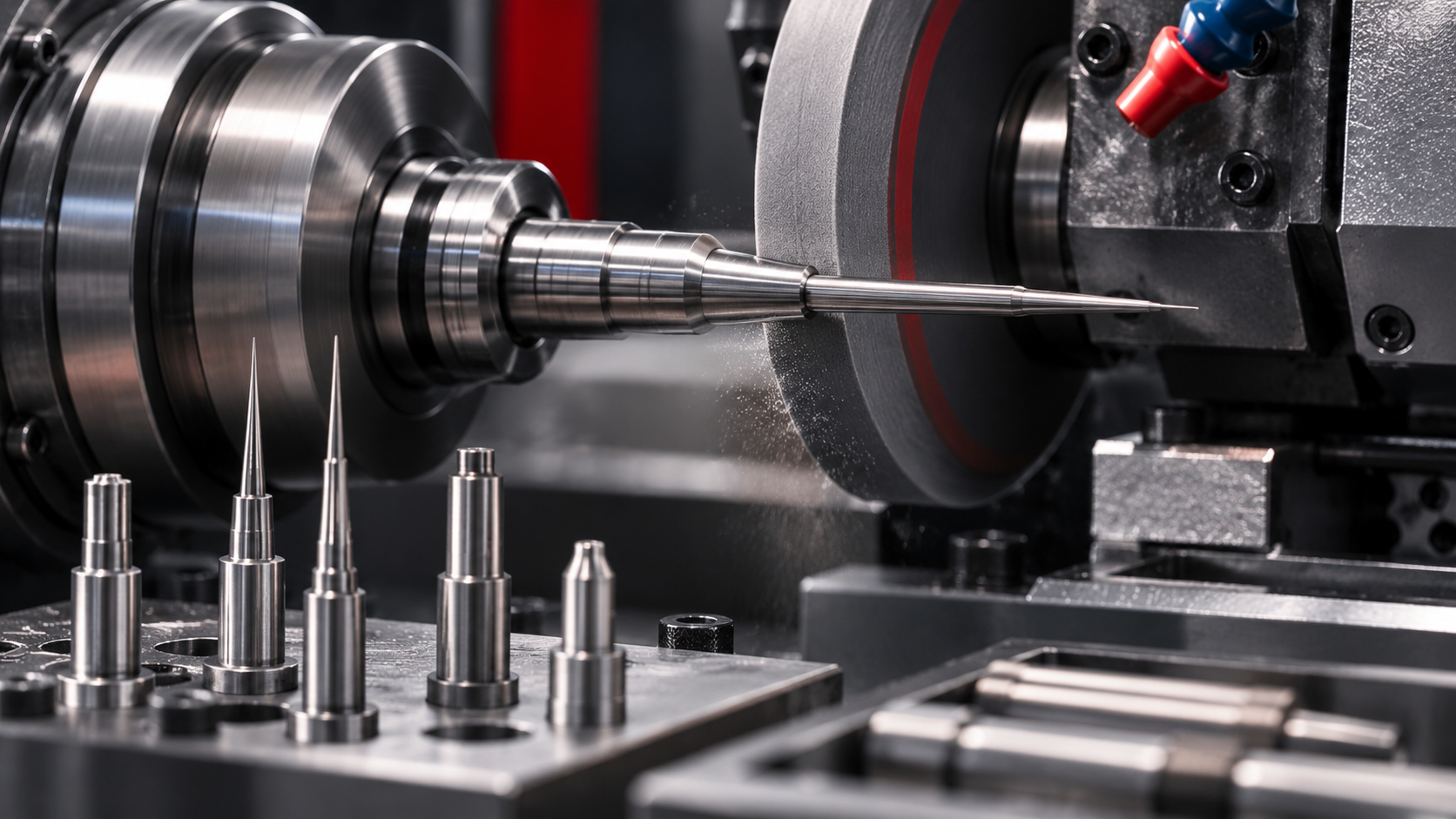

Precision grinding.
Machining & finishing.
Source a finished component or request a quote for a specific grinding, machining, honing or drilling operation. Tell us which work you need and the requirements your part must meet.
01 / PROCESS
Centerless Grinding↗
02 / PROCESSCylindrical OD Grinding↗
03 / PROCESSCylindrical ID Grinding↗
04 / PROCESSSurface Grinding↗
05 / PROCESSForm Grinding↗
06 / PROCESSThread Grinding↗
07 / PROCESSCNC Machining↗
08 / PROCESSPrecision Honing↗
09 / PROCESSGun Drilling↗
Related services include peck drilling, polishing, engraving and plating. Include any additional operations in your RFQ.
02 / Products
Custom components.
Built to your drawing.

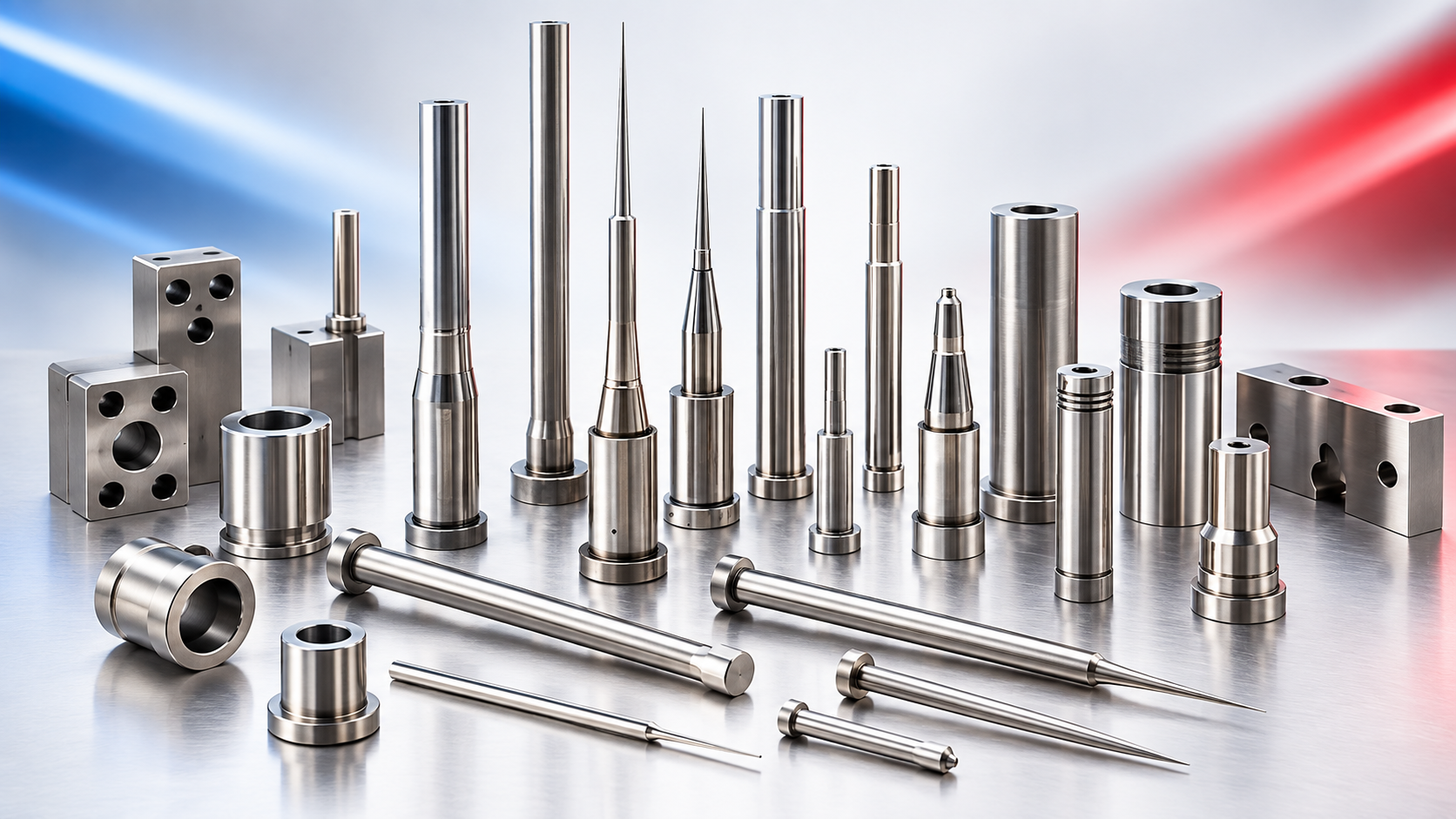

Core pins, ejector components and custom tooling for new molds, replacement parts and production requirements. Applications include plastic, rubber and silicone molding and die casting.
Explore All Products ↗
Complex geometry / Demanding requirements
Have a Part Other Shops Don't Want to Touch?
Unusual profiles, critical fits or a difficult-to-source component? Bring the drawing to U.S. Core Pins. Our team can review the geometry and manufacturing requirements with you.
Upload a Drawing & Request a Quote ↗03 / Industries served
Built for demanding
manufacturing markets.
For engineers specifying parts, mold makers building tools and purchasing teams sourcing components. U.S. Core Pins serves manufacturers and OEMs across molding, die casting, and tool and die applications.
04 / How it works
From your print to your part.
Project Review
We review the geometry, material and manufacturing requirements, and clarify open questions.
Receive Quote
Review the manufacturing scope, pricing and delivery timing for your component.
Manufacturing & Inspection
Approved requirements guide production and inspection.
Quality / Inspection
Quality & Inspection
We aim for 100% customer satisfaction and implement ISO standards with the ability to track and trace our products.
Include inspection records, traceability and documentation requirements in your RFQ so they can be addressed in the quote for your purchasing and quality teams.
Discuss Quality Requirements ↗
05 / About U.S. Core Pins Inc.
Precision Manufacturing for the Parts That Can't Be Off.
Based in Santa Ana, California, U.S. Core Pins brings more than 50 years of experience to precision grinding and custom mold components. Our products are made in the USA and shipped worldwide.
For new tooling, replacement components or another source for an existing drawing, contact our sales team to discuss the work you need.
Our Manufacturing
Inside U.S. Core Pins
Before you request a quote
Answers before
you send the print.
What should I include with my RFQ?
Send the current drawing revision, quantity and requested delivery date. Include material, critical dimensions, surface-finish requirements and any inspection or documentation needs when available. If a requirement is undecided, note it in the project description.
Can I send native CAD files?
The form accepts up to 10 files in PDF, DOC/DOCX, XLS/CSV, JPG/JPEG, PNG or GIF format. It does not accept native CAD files such as STEP, IGES or DWG. Upload a PDF drawing to start, or contact sales to send CAD files directly.
How is delivery timing confirmed?
Lead time depends on the geometry, material, quantity, required operations and current capacity. Include your desired delivery date; the project-specific timing is confirmed in the quote.
Where are U.S. Core Pins products manufactured?
U.S. Core Pins is based in Santa Ana, California. Its products are made in the USA and shipped worldwide.
06 / Request for quote
Request a quote
for your next component.
Send your drawing, quantity and desired delivery date. Include material and inspection requirements when available. Have questions first? Our sales team can help you get started.
Prefer to speak with the team?
714.540.2846
Have native CAD files? Contact sales directly to arrange your file handoff.
Contact Sales to Send CAD Files ↗Upload a Drawing & Request a Quote
Upload up to 10 files: PDF, DOC/DOCX, XLS/CSV, JPG/JPEG, PNG or GIF. Native CAD files are not accepted by this form. Technical fields are optional unless marked.
