01 / Drawing detail
Starting stock
State whether you will supply material or need a finished component. For supplied stock, include its current dimensions, material condition and the surfaces already completed.
Capabilities / U.S. Core Pins Inc.
Centerless Grinding

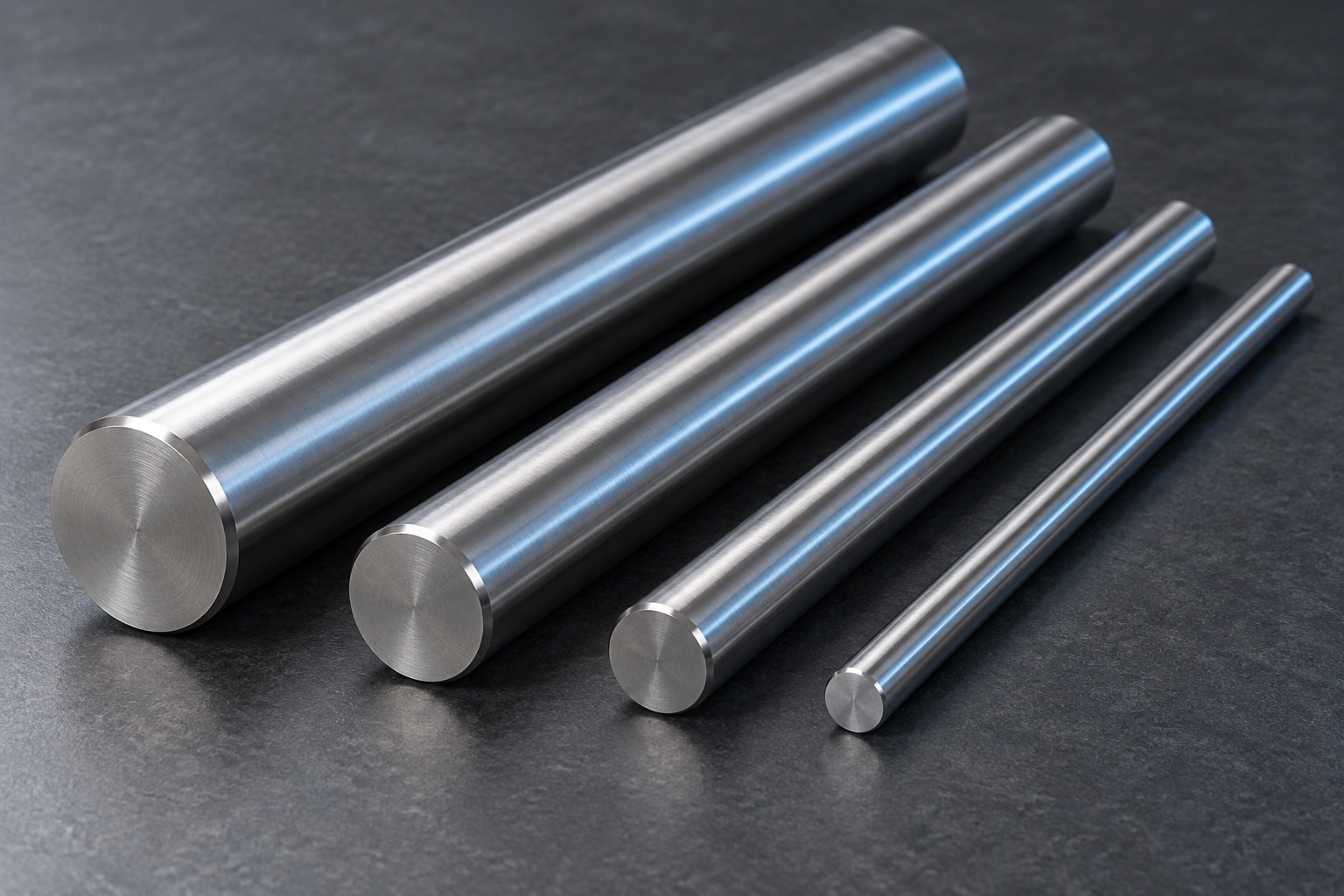

Centerless grinding for cylindrical pins and precision components. Request a quote for a grinding operation or a finished component from U.S. Core Pins in Santa Ana, California.
Your component / Your application
Quote the ground diameter your part requires.
Centerless grinding supports a cylindrical workpiece between a grinding wheel, a regulating wheel and a work-rest blade rather than locating it between centers. The grinding wheel removes stock while the regulating wheel helps control workpiece rotation and feed.
For a grinding-only request, include the starting-stock dimensions alongside the finished drawing. For a complete component, identify the finished requirements and any related operations. Shoulders, steps and interruptions help determine the suitable grinding approach.
02 / Drawing detail
Finished requirements
Identify the diameter, length to be ground and required surface finish. Include drawing controls for form or other critical geometry where the design requires them.
03 / Drawing detail
Features and handling
Show shoulders, steps, grooves and interruptions. Identify surfaces that must be protected and whether additional operations occur before or after grinding.
Ready for pricing
Start with your drawing.
Send your drawing, quantity and desired delivery date. Add the requirements you have available. If something is undecided, our sales team can discuss it with you.
Your quote confirms the manufacturing scope, pricing and delivery timing.
- Finished drawing plus starting-stock dimensions
- Material and heat-treatment condition
- Ground surfaces, dimensional limits and finish requirements
- Quantity, delivery needs and inspection expectations
Common questions
Before you send the drawing.
Is centerless grinding the same as grinding between centers?
No. The way the part is supported and driven differs. Choose the process around the geometry and drawing requirements; if the method is not fixed by your specification, identify the required result for review.
Should I send only the final diameter?
Include the full part drawing. Length, shoulders, material condition, starting stock and finish requirements all provide context that a single diameter cannot.
Your next component
Request a quote
for your next component.
Upload your PDF drawing, quantity and desired delivery date. Have questions first, or need to send native CAD files? Contact sales directly.
