Head, body and working end
Provide the head diameter and thickness, body dimensions, overall length and end geometry. Include any shoulder, relief or orientation feature required by the tool.
Products / U.S. Core Pins Inc.
Ejector Pins & Sleeves
Custom ejector pins, metric ejector pins and sleeves made in the USA for mold tooling. Quote new components or replacements against the drawing and mating requirements your tool needs.
Your component / Your application
Source the ejector components your tool needs.

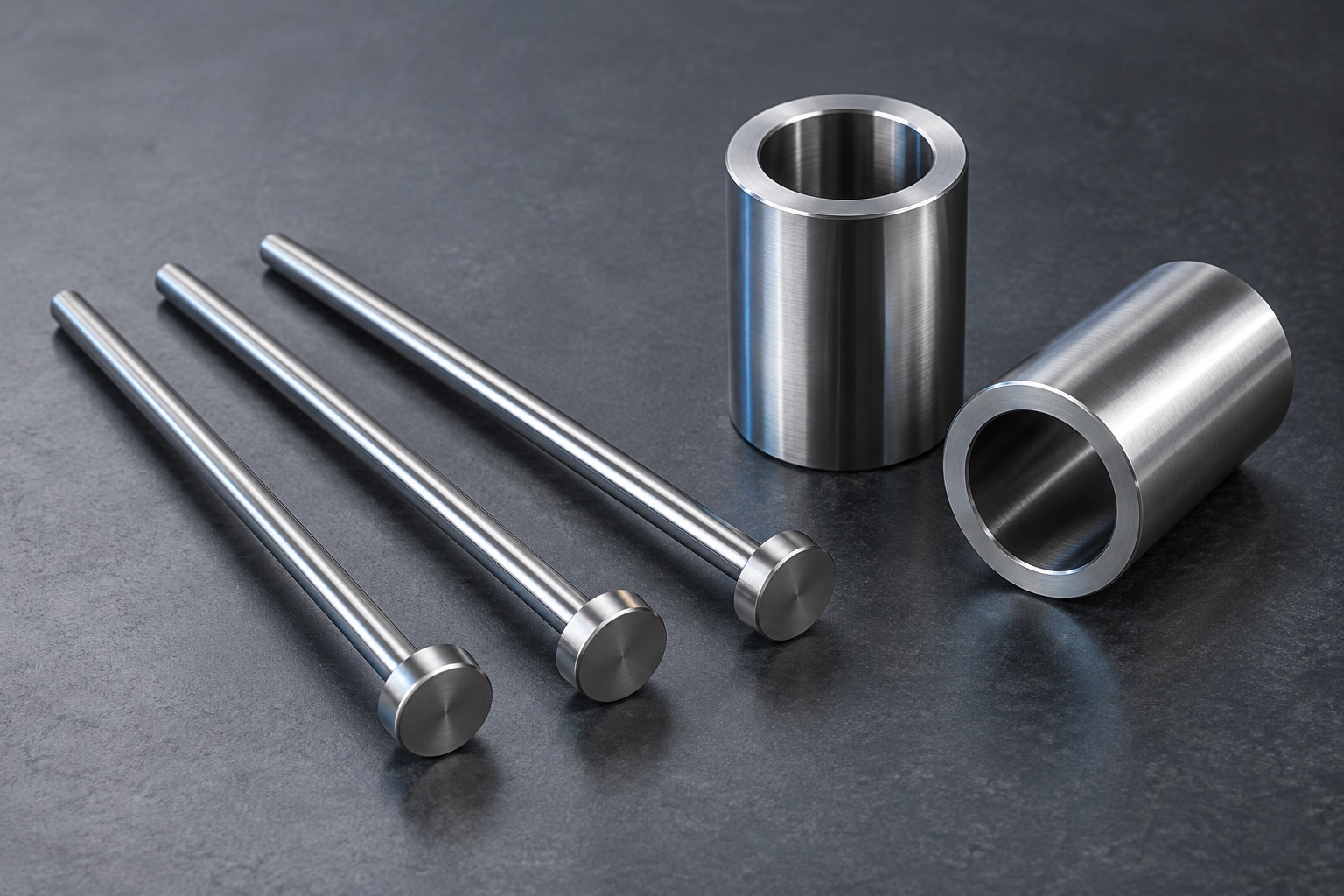

Ejector pins push against a molded part to help release it from the tool. The contact area and location can affect the marks left on the part, making the working end an important part of the specification.
For new tooling, replacement parts or a matched pin-and-sleeve requirement, quote the complete component. The head, working end and mating surfaces define how it fits and functions in your assembly.
02 / Drawing detail
Sleeve and mating details
For a sleeve, specify the bore, outside dimensions, wall geometry and end faces. Supply the mating component requirements when the relationship between the parts is critical.
03 / Drawing detail
Service requirements
State the material and condition required by the design. Note wear, sticking or an existing fit issue if it explains a replacement request, without substituting that description for dimensional requirements.
Ready for pricing
Start with your drawing.
Send your drawing, quantity and desired delivery date. Add the requirements you have available. If something is undecided, our sales team can discuss it with you.
Your quote confirms the manufacturing scope, pricing and delivery timing.
- Current drawing and whether the request is for a pin, sleeve or matched set
- Metric or inch units and all critical fits
- Specified material, hardness, treatment and surface finish
- Quantity, delivery needs and required inspection records
Common questions
Before you send the drawing.
Can I quote a replacement from a sample?
Contact sales to discuss the sample and the documentation available. Identify the approved dimensions or drawing revision when possible; wear on an existing component may not represent its original intended geometry.
Should the drawing include the mating component?
Include it when it defines a critical fit or relationship. If you only have the individual component print, explain the application and identify any fit requirement that still needs clarification.
Your next component
Request a quote
for your next component.
Upload your PDF drawing, quantity and desired delivery date. Have questions first, or need to send native CAD files? Contact sales directly.
