01 / Drawing detail
Bore geometry
Provide the finished diameter, depth, entry geometry and any internal shoulders or reliefs. State whether the bore is through or blind and show interruptions in the ground surface.
Capabilities / U.S. Core Pins Inc.
Cylindrical ID Grinding
Cylindrical ID grinding for precision bore requirements. Request a quote for the internal dimensions, surface finish and feature relationships specified on your component drawing.
Your component / Your application
Source the bore finishing your component needs.

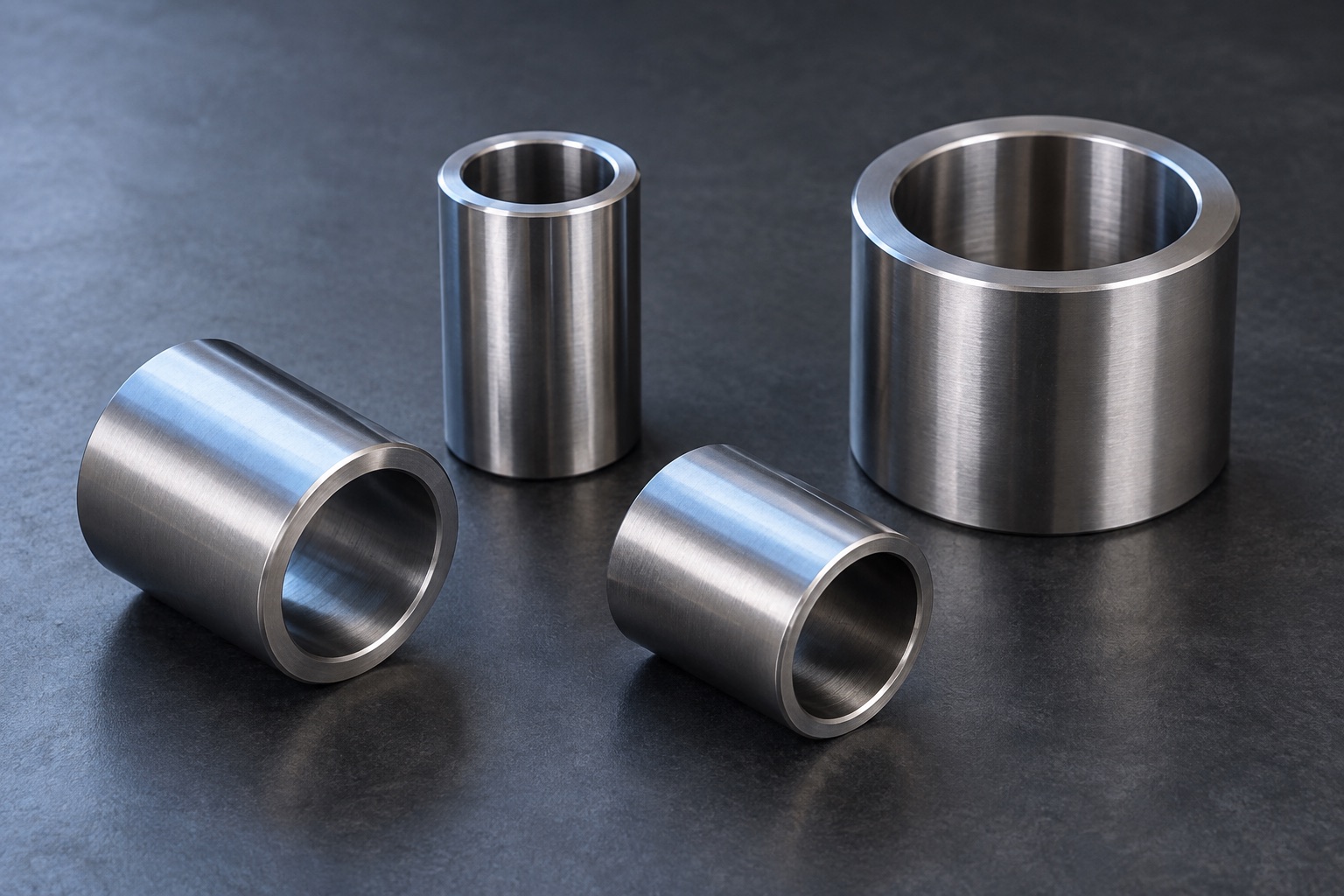

ID grinding uses an abrasive wheel inside the component to finish an internal surface. Bore access and the reach of the grinding tool are important considerations when reviewing the operation.
For an internal-grinding operation or a complete component, include a section view that shows the bore and related features. Through bores, blind ends and interruptions present different access conditions; the full geometry helps define the work included in your quote.
02 / Drawing detail
Related features
Identify the reference surfaces and required relationship to outside diameters or end faces. Include the applicable drawing controls rather than relying on a general description of alignment.
03 / Drawing detail
Surface and access
Specify finish requirements, material condition and starting dimensions. Include any restrictions on edge breaks, internal corners or surfaces that must remain untouched.
Ready for pricing
Start with your drawing.
Send your drawing, quantity and desired delivery date. Add the requirements you have available. If something is undecided, our sales team can discuss it with you.
Your quote confirms the manufacturing scope, pricing and delivery timing.
- Drawing with section views showing the full bore geometry
- Starting bore and outside dimensions
- Material condition, finished size and surface requirements
- Quantity, delivery needs and required bore inspection records
Common questions
Before you send the drawing.
Why does bore depth matter to the quote?
Depth affects tool reach and access. The grinding tool must reach the required surface, and its support must suit the operation. A bore diameter alone does not communicate those conditions.
Is ID grinding interchangeable with honing?
They are different finishing processes. If your specification requires one, identify it. If the method is open, send the geometry and finished requirements so the team can review the appropriate scope.
Your next component
Request a quote
for your next component.
Upload your PDF drawing, quantity and desired delivery date. Have questions first, or need to send native CAD files? Contact sales directly.
